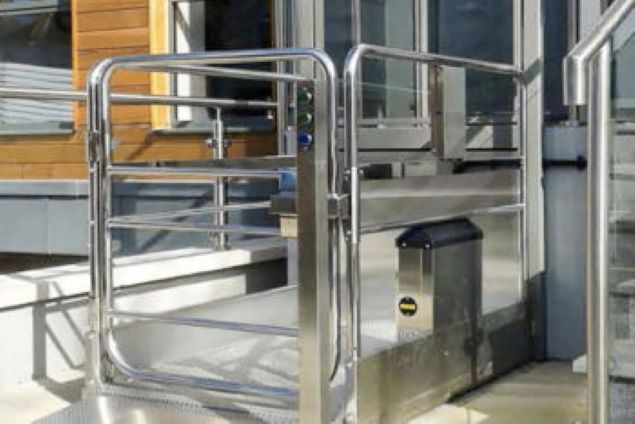

Engelli Platform Asansörü Terry Melody 1


A truly versatile lift, the Melody 1 Platform Lift can provide disabled access to a public or commercial building and also offer independent and easy wheelchair access in the home. It can be installed inside or outside the property, providing access for heights up to 1 metre.

Brand: Terry
Origin: England
Turkey Distributor: LifArt

More information about this product:
Compact and user-friendly disabled access
Our Melody 1 Platform Lifts are both functional and appealing. It has been designed to improve access where a wheelchair ramp is not a suitable option, due to lack of space or not enough length to achieve the required gradient. Melody 1 is free standing and compact, saving space and making it less obtrusive.

The design incorporates an external fixed ramp to eliminate the need for a pit, keeping building work to a minimum. Installed by our trained engineers in less than a day, it is a simple solution to disabled access into the home or a public building.

Benefits at a glance
Easy to use – convenient controls and shallow approach ramp
Reliable – battery back-up provides normal operation (up to 30 cycles) in case of power cut
Aesthetically pleasing – stainless steel finish as standard, it can also be customised from a range of paint finishes
Unobtrusive – state of the art hydraulic system provides a smooth and quiet operation
Safe – BS6440:2011 and Machinery Directive compliant


CALL US: 0549 608 00 70

Kaldırma Kapasitesi: 250 kg
Maksimum Kaldırma Yüksekliği: 1000 mm
Çalışma şekli: 24 volt hidrolik, makaslı tahrik
Güç kaynağı: 220/240 V AC ~ 50/60 Hz (özel besleme veya RCD gerekmemektedir)

Güvenlik donanımı: Asansörü engelleyecek şekilde durduran tam platformlu emniyetli kenarlı
Kapı kilidi: Üst seviyede koruma mevcuttur
İç platform boyutları: 900 mm x 1400 mm (standart)
Belgeleri: BS6440:2011 and Machinery Directive compliant
